RAPID® FLOOD BARRIER FOR DOORS

MODERNA Compression is a patented high performance barrier. The research in materials, the care in manufacturing, and the attention to the aesthetic aspect make the MODERNA BARRIER extremely pleasant and discreet without compromising reliability and resistance.


The ideal COMPRESSION BARRIER to protect regular and oversized doors from flooding without the need for intermediate upright posts.

MODERNA

The system has a self-locking closure and a removable locking handle.


The innovative system allows the barrier to be applied with less effort. It does not require installation work, masonry, permanent fixing systems and application of side profiles, in case of support with an adequate window frame or with a 2 cm protruding frame. If supported on a suitable window or frame projecting by 2 cm.

RAPID® Flood Barrier FEATURES

  • Compression barrier wedges into door and window frames
  • Custom manufactured
  • Manufactured out of anodized aluminum
  • Gaskets/seals for both freshwater and saltwater
  • Lightweight and easy to handle
  • locking closure with removable locking handle
  • Sizes range up to 10’ wide and 4’+ in protective height
  • Does not require modifications to the building for most applications

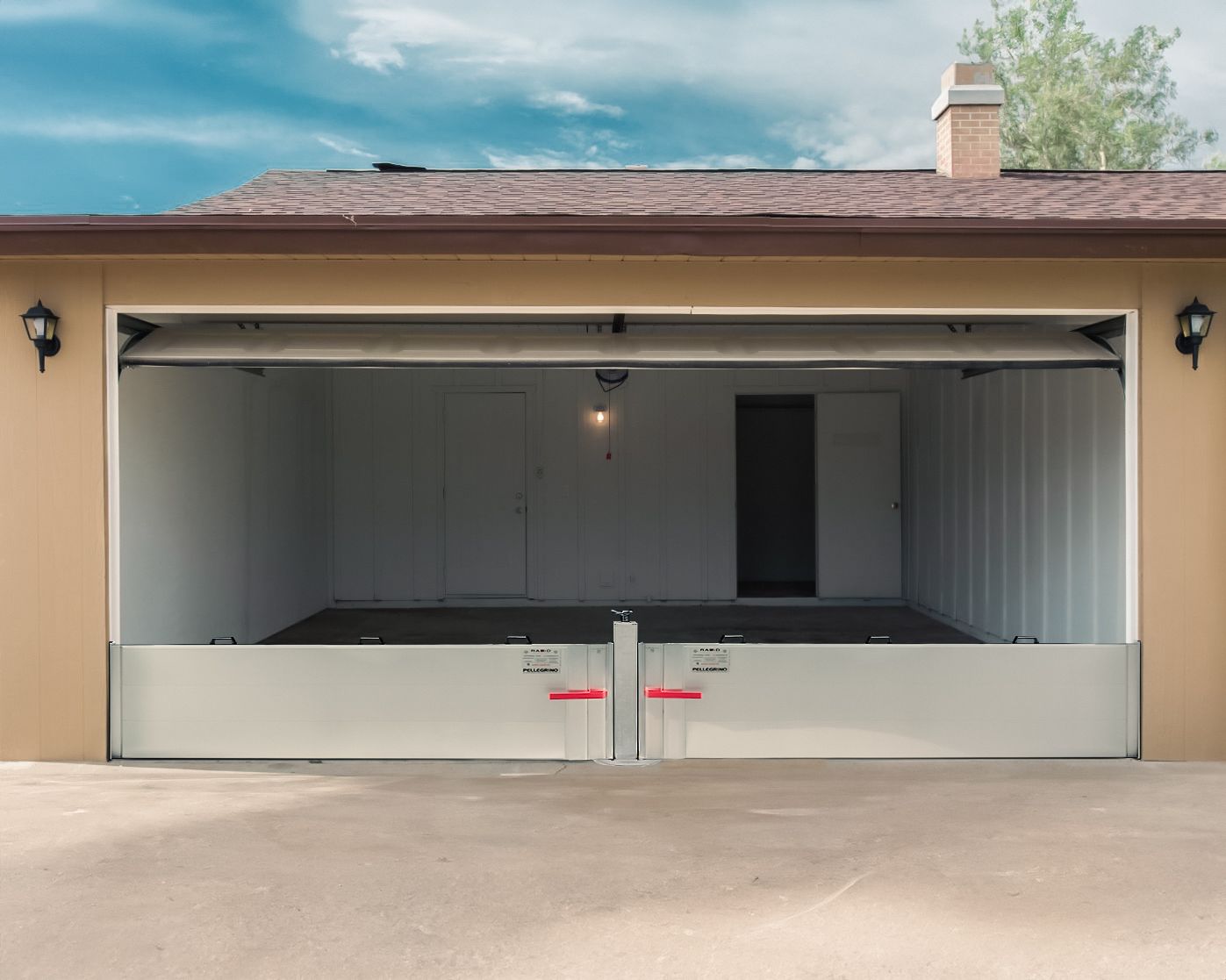

  • For openings larger than 10’ wide, removable upright posts can be installed to link multiple barriers together.

MODERNA Compression Barrier: Innovative Flood Protection for Doors and Windows

Quick and easy to install, light and easy to handle with no installation hardware required. Custom-made to adapt to the dimensions of the opening, even if the opening is not entirely square! The MODERNA barrier is made of anodized aluminum, and the smooth slat without gaps allows for proper cleaning.

CLOSE PADLOCK: The Close Padlock is not protruding; it is not exposed to flooding, and the padlock remains protected under the top handle.

ERGONOMIC: The patented kinematics allow it to not widen the barrier and then shrink, so it is applied with less effort, even in the highest dimensions.

The handle has an ergonomic grip and is softer to ladies, providing support,safety and strength.The barrier can be opened both from the inside and the outside.


CLOSING SYSTEM: It is applied with little effort and does not release when pressed from the inside.

SAFETY: The padlock is screwed with a safety screw in order not to be evaded by the drill.

SEALS: The horizontal gasket is intact and uncut. The rectangular gaskets allow lateral compression support and better water sealing of water and its pressures.

Special “pins” allow adequate compression of the horizontal seal.

FUNCTIONAL: An extra optional handle, supplied on request, can only be external and removable.

STURDY: Stronger and better performing hinge.


MODERNA “PLUS” is a system with the same dimensions in the compartment but a stronger and wider barrier.


PRICE: Dare to compare to other aluminum panels on the market!!


Download Moderna Technical Sheet: Moderna Technical Sheet
